| Model |

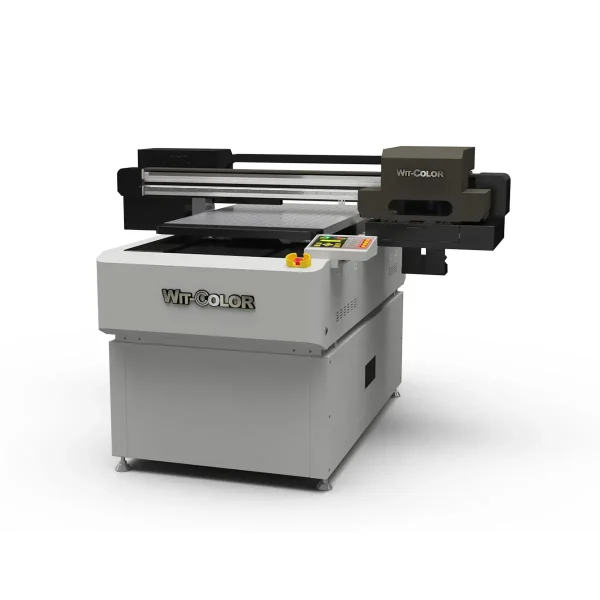

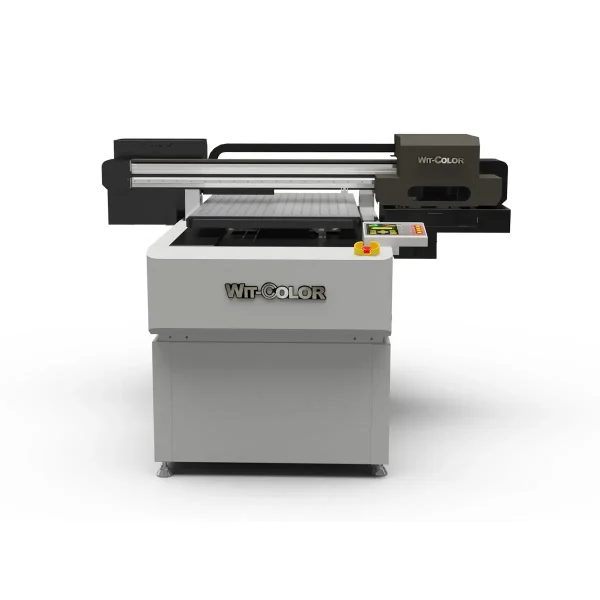

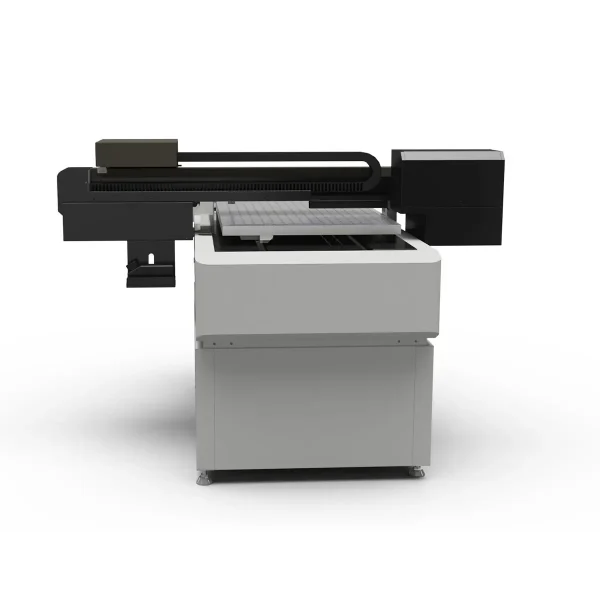

UVIP 6090 |
| Printing Technology |
UV Printing |
| Print Head |
Epson i3200 |
| Acceptable Media |
Type |
Metal Plate,Glass,Wooden Board, Acrylic,Mobile Covers etc. |
| Width |
≦600*900mm |
| Thickness |
≦130mm |
| Weight |
|
| Ink Type |
UV Ink ：CMYK LCLM W V |
| Ink Supply |
Negative Pressure Ink Supply |
| Ink Cartridges |
Capacity |
Color Siphon+White ink auto-stirring |
| Color |
CMYK+LC、LM+W+Varnish |
| Image Format |
Tiff, JPEG, EPS, PDF |
| RIP Software |
Photoprint(Standard) PrintFactory/Onyx /Caldera(optional) |
| Printing Resolution |
Maximum |
| Speed |
Mode |
Full Color |
W+C |
W+C+V |
| High Resolution Mode |
18㎡/h |
12㎡/h |
6㎡/h |
| Standard Mode |
27㎡/h |
18㎡/h |
9㎡/h |
| Production Mode |
36㎡/h |
24㎡/h |
12㎡/h |
| Ink Curing Method |
Dual UV LED Lights |
| Control System |
Win10 |
| Power |
3600W |
| Interface |
Gigabit Ethernet |
| Power Supply |
AC 220V±10%, 50/60 HZ |
| UPS |
3KVA |
| Air Source |
N/A |
| Interface |
Gigabit Ethernet |
| Power Supply |
AC 220V±10%, 50/60 HZ |
| UPS |
3KVA |
| Air Source |
N/A |
| Packing Dimension |
Inch |
L:68.90 x W:72.83 x H:37.40 1 Inch=25.4 mm |
| Meter |
L:1.75m x W:1.85m x H:0.95m |
| Printer Dimension |
Inch |
L:64.96 x W:49.21 x H:59.84 1 Inch=25.4 mm |
| Meter |
L：1.65m x W：1.25m x H:1.52m |
| Weight |
N.W 726 lb. 330kg 1kg =2.2 lb. G.W 990 lb. 450kg 1kg =2.2 lb. |
| Environment |
Power On |
Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation) |
| Power Off |
Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation) |
| Safety Certification |
CE Certified |
