RichoGen 6 Print Head
High-definition and High-productivity
A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.
Enhanced Ink compatibility
This head is compatible with UV, Solvent and Aqueous based inks. Specifically, the aqueous ink compatibility and service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it.
- Printer Details
- Printing Width: 1.3m*1.3m
- Print Head: Ricoh Gen6
- Print Head Quantity: 3/4/5/6/7/8/12/16 pcs
- Inks: UV ink
- RIP Software: PhotoPrint or Print Factory

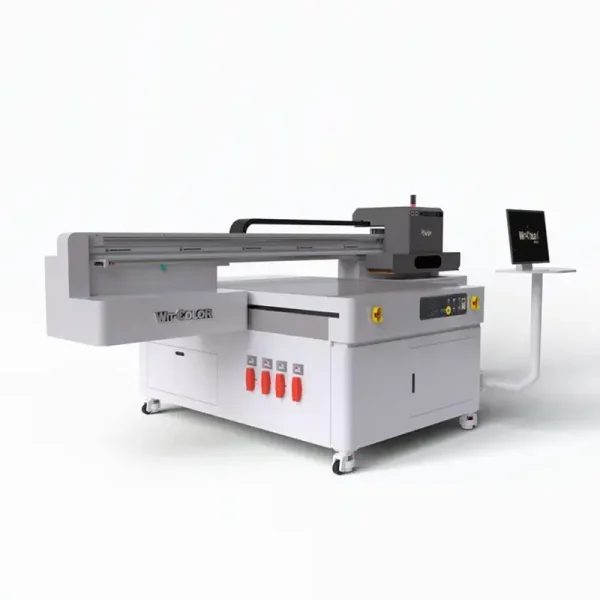

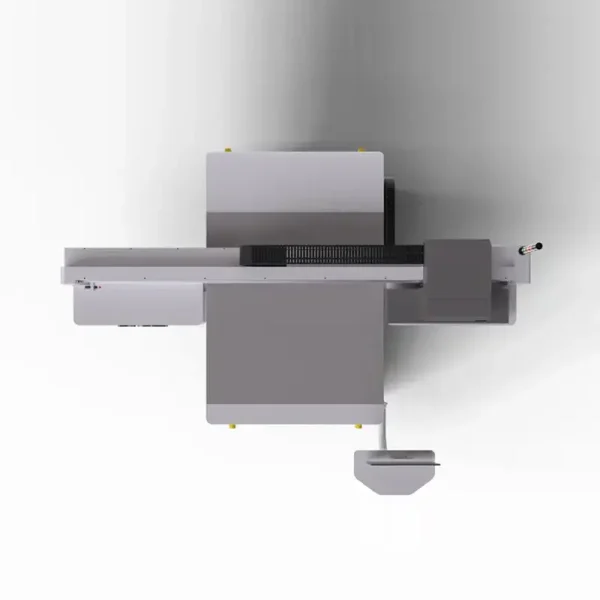

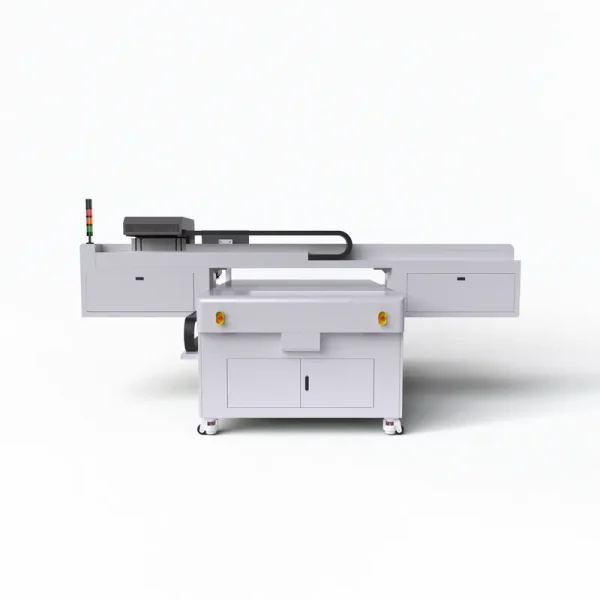

| Model | UVIP 1313 | |||
| Printing Technology | UV Printing | |||
| Print Head | Ricoh Gen6 | |||
| Acceptable Media | Type | Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers etc. | ||
| Width | ≦1300*1300mm | |||
| Thickness | ≦130mm | |||
| Ink Type | UV Ink ：CMYK LCLM W V | |||
| Ink Supply | Negative Pressure Ink Supply | |||
| Ink Cartridges | Capacity | Color Siphon+White ink auto-stirring | ||
| Color | CMYK+LC, LM+W+Varnish | |||
| Image Format | Tiff, JPEG, EPS, PDF | |||
| RIP Software | Photoprint(Standard) PrintFactory/Onyx /Caldera(optional) | |||
| Printing Resolution | Maximum | |||
| Speed | Mode | In-line | Staggered | Triple Rows |
| Production Mode | 40㎡/h | 75㎡/h | 110㎡/h | |
| Standard Mode | 30㎡/h | 60㎡/h | 90㎡/h | |
| High Resolution Mode | 20㎡/h | 40㎡/h | 60㎡/h | |
| Ink Curing Method | Dual UV LED Lights | |||
| Control System | Win10 | |||
| Power | 3600W | |||
| Interface | Gigabit Ethernet | |||
| Power Supply | AC 220V±10%, 50/60 HZ | |||
| UPS | 3KVA | |||
| Air Source | N/A | |||
| Packing Dimension | Inch | L:137.01 x W:89.76x H:68.11 1 Inch=25.4 mm | ||
| Meter | L:3.48m x W:2.28m x H:1.73m | |||
| Printer Dimension | Inch | L:137.80 x W:90.55 x H:66.93 1 Inch=25.4 mm | ||
| Meter | L：3.5x W：2.3m x H:1.7m | |||
| Weight | N.W 1672 lb. 760kg 1kg =2.2 lb. G.W 2200 lb. 1000kg 1kg =2.2 lb. | |||
| Environment | Power On | Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation) | ||
| Power Off | Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation) | |||
| Safety Certification | CE Certified | |||
